Sesam CS-Flatliner

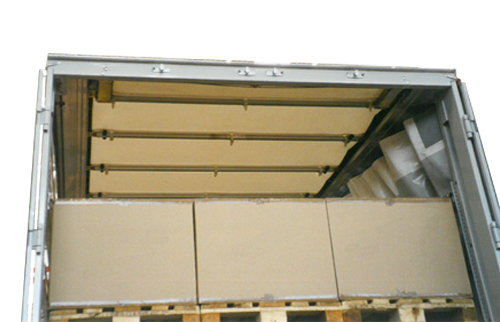

The SESAM CS Flatliner is suitable for particularly high side loading.

Ideal use of space

  • Extreme flat aluminium track so that the loading height from the sides is maximized.

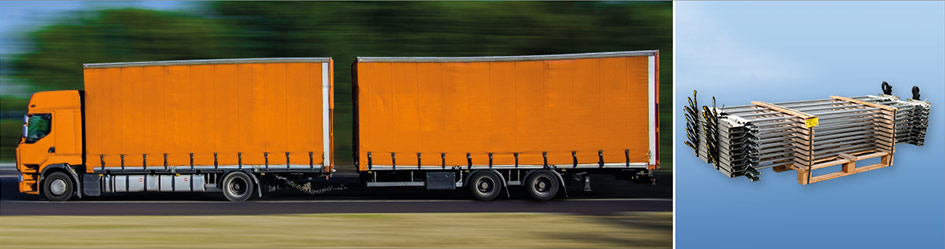

  • Suitable for motorvehicles, trailers and containers because of the maximum length of 11 metres.
  • Perfect for robust volume-articulated trains
  • Ideal for beverage logistics
Ideal use of space
Ideal use of space

Light and solid

  • This carrier is uniquely simple and functional
  • High lateral stiffness
  • Often eliminates the need for an expensive lifting system
  • Easy construction
Light and solid
Light and solid

Smooth operation

  • Easy handling
  • Little effort required
  • Developed by the pioneer of the folding panel roof
Smooth operation
Smooth operation

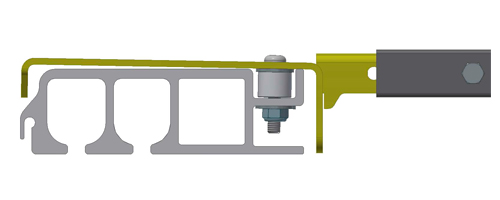

Fixed roof version Flatliner-Fix

  • On request
Fixed roof version Flatliner-Fix
Fixed roof version Flatliner-Fix

Characteristics

  • Massive end carriage made of steel
  • Embossed, calibrated roof bows with cross section 30 x 30 mm
  • Flat roof strap concept
  • Robust folding plates with slide-in system
  • Bow with 692 mm bow spacing
  • Optionally also with 592 mm bow spacing

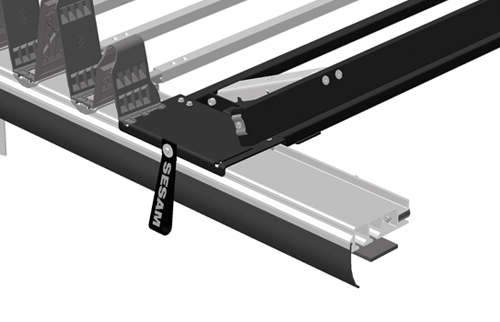

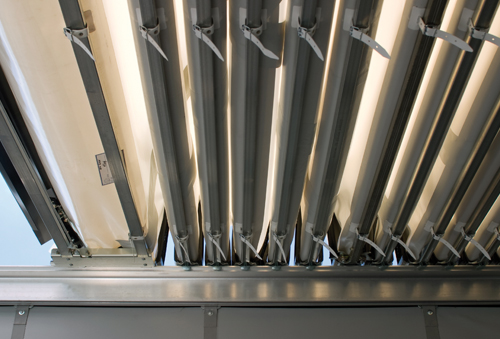

Roof structure
Roof structure

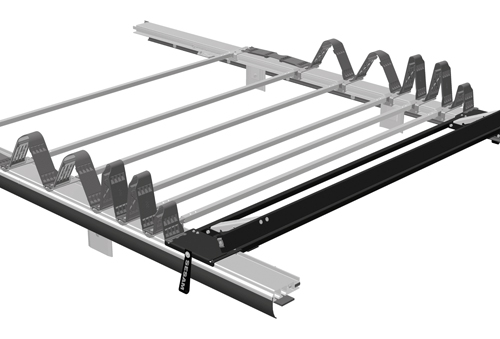

short roof-package
short roof-package

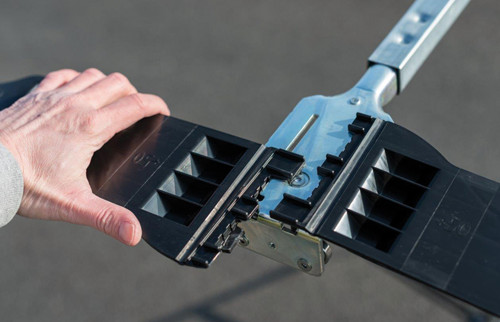

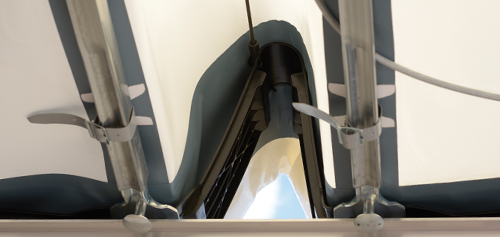

Robust joints with insert system and drill holes for expander cable (XL cables do not protrude into cargo space)
Robust joints with insert system and drill holes for expander cable (XL cables do not protrude into cargo space)
