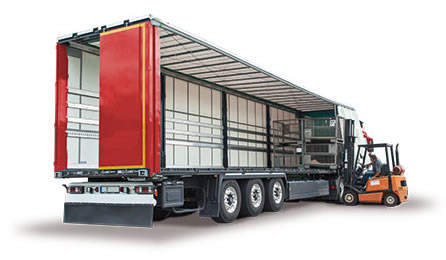

Edscha TS CS-Hybrid

Technical maturity, easy operation and high stability are the most important factors, particularly in the sector of heavy-use sliding roofs. With the introduction of its CurtainSider Hybrid sliding roof Edscha Trailer Systems is setting new standards through the use of a clever material combination of plastic and steel and intelligent joining technology for robust and durable tarpaulin roof systems.

They offer optimum kinematics in a reduced installation space and thus provide more load volume and smaller operating forces without any compromises with respect to assembly and durability.

Advantages

  • Intelligent construction
    • No torsion effects in the vehicle structure thanks to externally fitted runners
    • Independent of negative, external factors such as roof loads and the resulting profile torsion
    • Cross-compatibility with other systems in the new Edscha TS generation
    • Optimum (roof) runner structure for more rigid structural stability with reduced weight
  • Edscha TS CS-Hybrid
    • Intelligent material mix with reinforced steel/plastic hybrid structure
    • New, robust joints with optimised fold kinematics and honeycomb structure ribbing including eyelet for expander cable
    • Externally mounted, coated and low-friction rollers
  • Maximum robustness and stability with optimised loading volume

    The Edscha TS CurtainSider-Hybrid roof was specially developed for high demands. The steel-reinforced hybrid structure increases the possible uses of the curtain sider, e.g. for paper transport. e.g. for paper transport. The CS-Hybrid is however also advantageous for universal and volume transport and for the drinks and automotive sectors, depending on the area of use and the equipment version.

  • Solid functionality

    Edscha TS CurtainSider Hybrid roofs are weight-optimised, constructed according to a modular principle and, thanks to assembly and replacement-friendly plug-in connections, fast and flexible to fit.

Robust and rigid trolleys in HYBRID design
Robust and rigid trolleys in HYBRID design
Verstärkte Stahl/Kunststoff-Hybridbauweise
Reinforced steel/plastic hybrid structure
Außen liegende, beschichtete und reibungarme Laufrollen
Externally mounted, coated and low-friction rollers

Special features

  • New high-strength roller carriages with load-oriented material distribution in the component, made up of two materials
  • Hybrid versions with compatible roller channels on runners
  • New moulded roof bows with cross-section 30 x 30 mm
  • New joints with optimised fold kinematics and honeycomb ribbing including eyelet for expander cable
  • Joints in interim lengths and new length-adjustable compensating joint
  • New TIR tarpaulin adjustment
  • New side tarpaulin rollersr
  • Cross-compatibility to other systems in the new Edscha-TS generation
Neue robuste Gelenke mit optimierter Falt-Kinematik und Wabenstruktur inkl. Öse für Expanderseil
New robust joints with optimised fold kinematics and honeycomb structure including eyelet for expander cable
TIR Zollsicherung
Ideal for customs purposes

Functional overview

Curtain Opening Process
  • Reliable in the long term
  • Fast and smooth-running
  • Maximum self-supporting opening approx. 85-90% of the structural length (TIR 75-80%)
Curtain Opening Process
Curtain Opening Process
Curtain Opening Process
Curtain Opening Process
Roof Opening Process
  • operation by one individual
  • within a few seconds
  • from the ground
  • movable towards the rear upon request
Roof Opening Process
Roof Opening Process
Roof Opening Process
Roof Opening Process

Accessories / expansion components

Semi-automatic swinging tail wing for vehicles with sliding roof and tailgate.

Pneumatic drainage system for the prevention or simple removal of larger volumes of water on the roof tarpaulin and thus prevention of ice formation.

International road transport of goods under the TIR procedure.

Roof reinforcement according to EN12642 XL.

DB design (suitable for combined transport and checked by Deutsche Bahn).

XL-Version auf Wunsch voll integriert
XL-version fully integrated on request
Dachaussteifung nach EN12642 XL
Roof reinforcement in accordance with EN12642 XL Expander cables efficiently prevent steel cables from hanging down into the cargo space.

Application examples

  • Universal: Developed for everyday use.
  • Volumen: Maximum use of available load volume.
  • Paper: Especially suited for paper transport.
  • Beverages: Advantageous use for transport tasks in the beverage industry.
  • Automotive: Advantageous use for transport tasks in the automotive sector.
  • TIR: International road transport.
  • Ferry: Especially suited for transport by ferry.
