Edscha TS CS-Profi

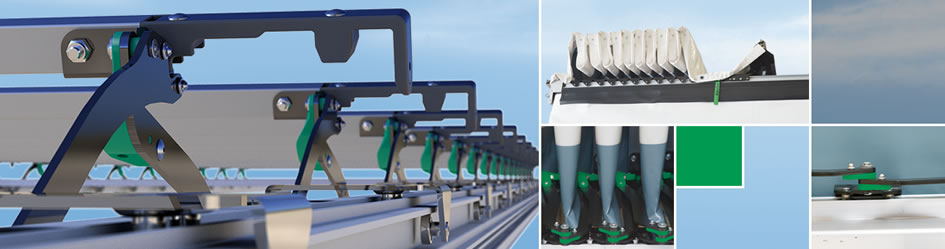

The new generation of the Edscha TS CS-Profi roof

The consistent use of robust steel joints in combination with the latest fibre-reinforced plastics at the most important functional component interfaces achieves remarkable product improvements in relation to quality, operating comfort, weight and durability.

Advantages

  • New, high-strength roller carriages in steel
  • Roof bows with cross-section 30 x 30 mm
  • New joint concept with optimised fold/lift kinematics in the roof bows
  • Optimised for frequent loading from above
Plastic elements for freedom from maintenance, easy operation and weight reduction
Plastic elements for freedom from maintenance, easy operation and weight reduction
New tarpaulin attachments. Stable, light and functional. New: Now adjustable, protects the aluminium carrier by lifting the tarpaulin carrier.
New tarpaulin attachments. Stable, light and functional. New: Now adjustable, protects the aluminium carrier by lifting the tarpaulin carrier.

Equipment options

  • For special requirements
  • Standard end carriage
  • Optional DB design (suitable for combined transport and checked by Deutsche Bahn)
  • For professional roof strap 125 mm
  • With standard gantry beams 130 mm
  • Optional with gantry beams for driving height adjustment
  • Optional Code XL-capable with 4-cable and 8-cable roof reinforcement
  • Optional combination with TailWing
Advantageous tarpaulin folding – XL bow can be mounted anywhere (on every roller carriage)
XL bow can be mounted anywhere (on every roller carriage)
Adjustable knee lever ensures smooth running and protects the aluminium carrier by lifting the tarpaulin carrier.
Adjustable knee lever ensures smooth running and protects the aluminium carrier by lifting the tarpaulin carrier.

Application examples

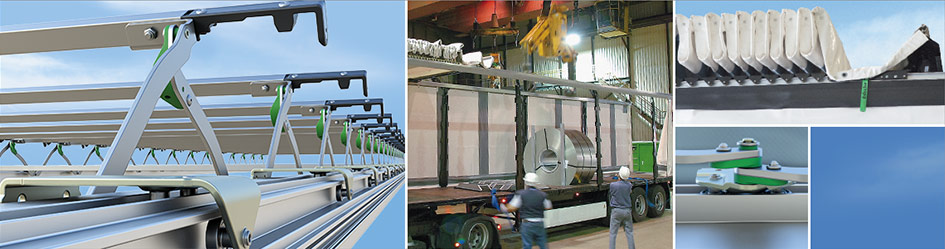

  • Coil: Especially suited for coil transport.
  • Paper: Especially suited for paper transport.
  • Automotive: Advantageous use for transport tasks in the automotive sector.
  • Construction: Advantageous use for transport tasks in the automotive sector.
Especially suited for coil transport.
Especially suited for coil transport.

Downloads

  • Katalog PDF

    Brochure

    Edscha TS CS-Profi

  • User Manual PDF

    User Manual

    Edscha TS CS-Profi

  • Assembly Instructions PDF

    Assembly Instructions

    Edscha TS CS-Profi

  • Repairing Instructions PDF

    Repairing Instructions

    Edscha TS CS-Profi

  •
