Edscha TS OpenBox Road & Offroad

Thanks to an ingeniously simple technical solution, for which a patent is pending, it has finally been possible to apply the convenience of the modern Edscha TS roof to sliding floor trailers and all opentop bodies.

Advantages

The new Edscha TS OpenBox Road & Offroad roof was developed primarily for sliding floor trailers but is also ideal for any other application in which the solid walls need to be as high as possible for maximum loading capacity.

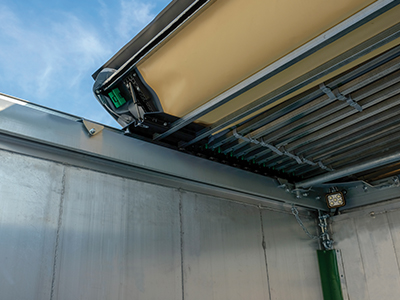

At the heart of the system is the ingenious, patent pending „floating“ mount of the proven interchangeable steel rail system, which can easily bridge the approx. ±30 mm bulging or lateral deformation of the walls, while providing optimum sealing. Furthermore, having a closed roof during empty runs achieves significant savings on diesel fuel!

The ductility of the tipper is up to ±30 mm in width.

OpenBox
OpenBox
OpenBox
OpenBox

Characteristics

  • manual side operation from the ground and eligible
  • Easy and quick to open, even with ductility of up to ±30 mm
  • fully integrable and always tightly sealed
  • depending on the version, this does not affect the loading volume and external dimensions
  • significant savings on diesel fuel by always having a closed roof, even when empty
  • robust and service-friendly thanks to the steel rail system with easily exchangeable segments

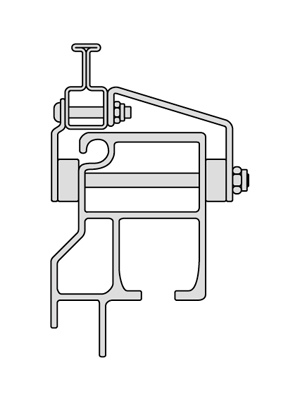

Standard
Standard

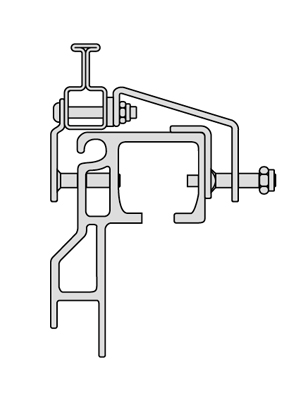

Volumen
Volumen

Operation

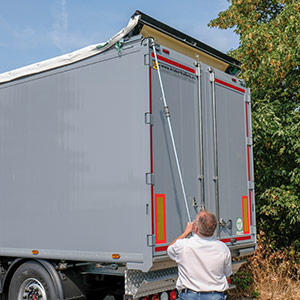

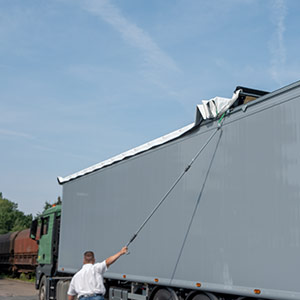

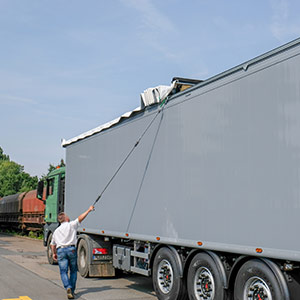

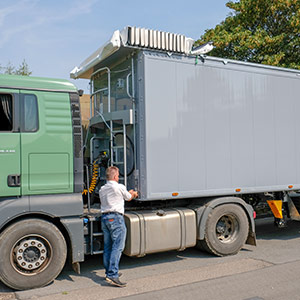

Opening procedure, one-man operation from the ground

Öffnungsvorgang
Öffnungsvorgang
Öffnungsvorgang
Öffnungsvorgang

Downloads

  • Brochure PDF

    Brochure

    Edscha TS OpenBox Road & Offroad

  •
