Edscha TS VP-Profi

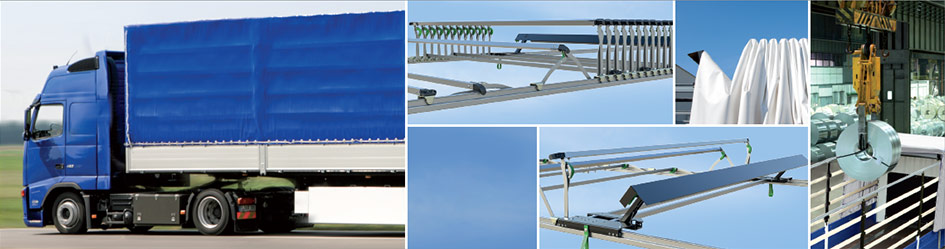

The new generation of the Edscha TS VP-Profi roof

The „Profi“ is particularly useful in lines of business with frequent crane loading, as well as unpredictable and changing working and weather conditions. Even with low craneways lateral loading is possible as the running rail can be removed in segments.

Advantages

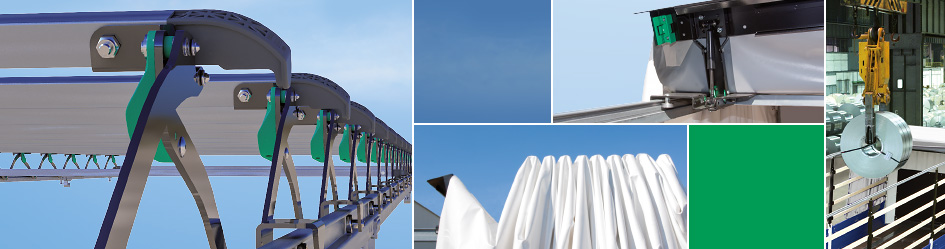

  • Steel joints and ascending roof bow
  • Steel roller carriage with 3 ball bearings
  • End running section with transverse ball bearings and end lift for positioning the end bow or the Edscha TS gantry beam
  • Steel bows, DB bows, WB-approval according to EN 283
The Profi full tarpaulin roof is the direct „descendant“ of the original invention and a real  all-rounder. This product gave rise to the generic term „sliding roof“.
The Profi full tarpaulin roof is the direct „descendant“ of the original invention and a real all-rounder. This product gave rise to the generic term „sliding roof“.
Optimal tarpaulin folding through the use of steel bows
Optimal tarpaulin folding through the use of steel bows
Optimal tarpaulin folding through the use of steel bows
Optimal tarpaulin folding through the use of steel bows

Equipment options

  • Can be opened on both sides
  • End lift
  • Optional for rail roofs
  • Gantry beam with positioning function
  • Edscha top coupling for easy insertion and removal of the central pillars
  • Tested railway design according to DIN EN 283
  • Optional combination with TailWing
New tarpaulin attachments. Stable, light and functional. New: Now adjustable, protects the aluminium carrier by lifting the bow.
New tarpaulin attachments. Stable, light and functional. New: Now adjustable, protects the aluminium carrier by lifting the bow.
The adjustable compensating joint is necessary for the use of the bidirectional movement.
The adjustable compensating joint is necessary for the use of the bidirectional movement.

Downloads

  • Katalog PDF

    Brochure

    Edscha TS VP-Profi

  • User Manual PDF

    User Manual

    Edscha TS VP-Profi

  • Assembly Instructions PDF

    Assembly Instructions

    Edscha TS VP-Profi

  • Repairing Instructions PDF

    Repairing Instructions

    Edscha TS VP-Profi

  •
